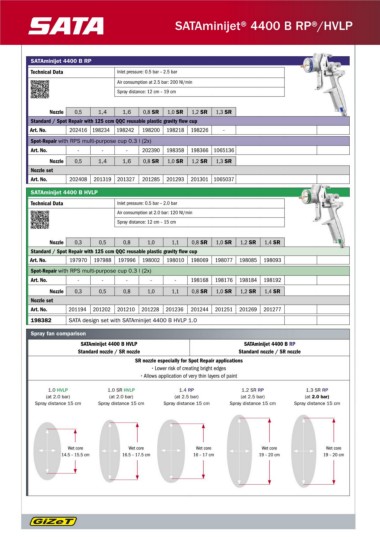

Page 60 - Cataloque_Final 2019_Flip

SATAminijet® 4400 B RP®/HVLP

SATAminijet 4400 B RP
Technical Data Inlet pressure: 0.5 bar – 2.5 bar

Air consumption at 2.5 bar: 200 Nl/min
Spray distance: 12 cm – 19 cm

Nozzle 0,5 1,4 1,6 0,8 SR 1,0 SR 1,2 SR 1,3 SR

Art. No. 202416 198234 198242 198200 198218 198226 -
Spot-Repair with RPS multi-purpose cup 0.3 l (2x)
Art. No. - - - 202390 198358 198366 1065136
Nozzle 0,5 1,4 1,6 0,8 SR 1,0 SR 1,2 SR 1,3 SR
Nozzle set
Art. No. 202408 201319 201327 201285 201293 201301 1065037

SATAminijet 4400 B HVLP
Technical Data Inlet pressure: 0.5 bar – 2.0 bar
Air consumption at 2.0 bar: 120 Nl/min
Spray distance: 12 cm – 15 cm

Nozzle 0,3 0,5 0,8 1,0 1,1 0,8 SR 1,0 SR 1,2 SR 1,4 SR

Art. No. 197970 197988 197996 198002 198010 198069 198077 198085 198093
Spot-Repair with RPS multi-purpose cup 0.3 l (2x)
Art. No. - - - - - 198168 198176 198184 198192
Nozzle 0,3 0,5 0,8 1,0 1,1 0,8 SR 1,0 SR 1,2 SR 1,4 SR
Nozzle set
Art. No. 201194 201202 201210 201228 201236 201244 201251 201269 201277
198382 SATA design set with SATAminijet 4400 B HVLP 1.0

Spray fan comparison
SATAminijet 4400 B HVLP SATAminijet 4400 B RP
Standard nozzle / SR nozzle Standard nozzle / SR nozzle
SR nozzle especially for Spot Repair applications
· Lower risk of creating bright edges
· Allows application of very thin layers of paint

1.0 HVLP 1.0 SR HVLP 1.4 RP 1.2 SR RP 1.3 SR RP
(at 2.0 bar) (at 2.0 bar) (at 2.5 bar) (at 2.5 bar) (at 2.0 bar)
Spray distance 15 cm Spray distance 15 cm Spray distance 15 cm Spray distance 15 cm Spray distance 15 cm

Wet core Wet core Wet core Wet core Wet core
14.5 – 15.5 cm 16.5 – 17.5 cm 16 – 17 cm 19 – 20 cm 19 – 20 cm
